Fixed beam precision gantry gr
Your current location is：home>>Product Center>>Fixed beam precision gantry gr

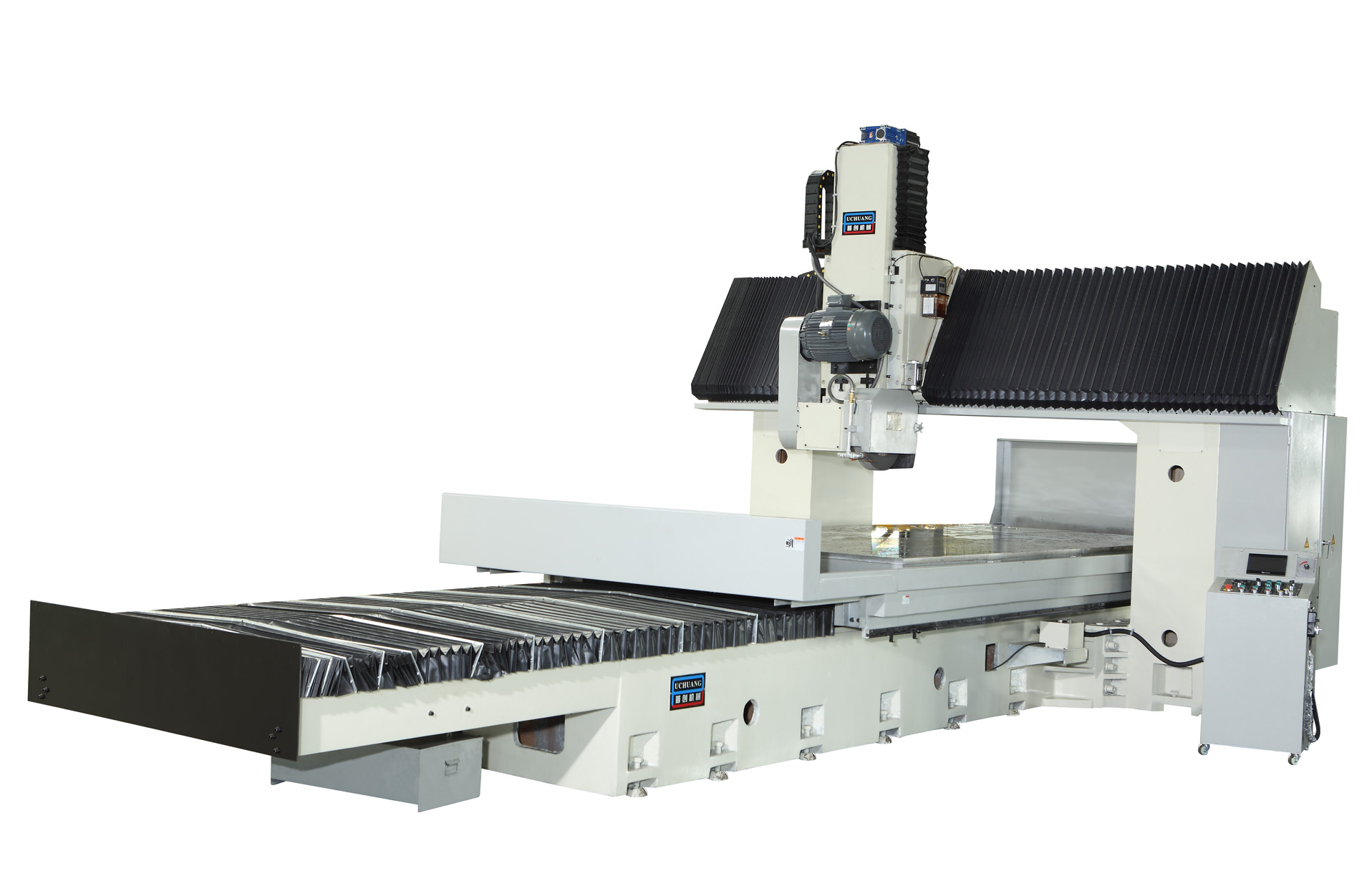

Longmen grinder PCLD-80160/80200NC
Category of ownership：
Summary of details：Front and rear CNC/electronic handwheel left and right hydraulic (Taiwan hydraulic components) grinding grade ball screw is guaranteed unconditionally and free for two years nationwide, without any charge, the only domestic machine with two-year quality g
hotline：
18820302725
【introduce】
Front and rear CNC/electronic handwheel
Left and Right Hydraulic Pressure (Taiwan Hydraulic Components)
Grinding grade ball screw
There is no charge for the unconditional free warranty of two years in the whole country. It is the only machine tool brand with two years'quality guarantee in China.
| 参数表 | 规格parameter | 单位 | 80160/80200NC | 90200/90250NC |
| 能力general picture | 工作台工作面积Table size （x*y） | mm | 800×1600/2000 | 900×2000/2500 |
| 左右最大移动量X axis travel | mm | 1900/2300 | 2300/2800 | |
| 工作台面至主轴中心最大距离 | mm | 950 | 950 | |
| Max center of wheel to table | ||||
| 通过门柱最大距离 | mm | 1040 | 1040 | |
| 工作台Table | 工作台最大承受重量Maximum load | kgs | 2000 | 2000 |
| 工作台速度 | m/min | 5~25 | 5~25 | |
| 工作台T型槽 | mm×N | 18*3 | 18*3 | |
| 横磨头grinding wheel | 砂轮尺寸grindingwheel size max | mm | Φ500×Φ203×50-100 | |
| 主轴马达spindle motor | HXP | 15×4 | 15×4 | |
| 砂轮转速（50HZ） | R.P.M | 1200 | 1200 | |
| 尺寸Size | 机器高度height of machine | mm | 3600 | 3600 |
| 占地面积floor space | mm | 2500×5000/5500 | 2500×5500/6000 | |
| 重量weight | kgs | 14000/16000 | 17000/19000 | |
