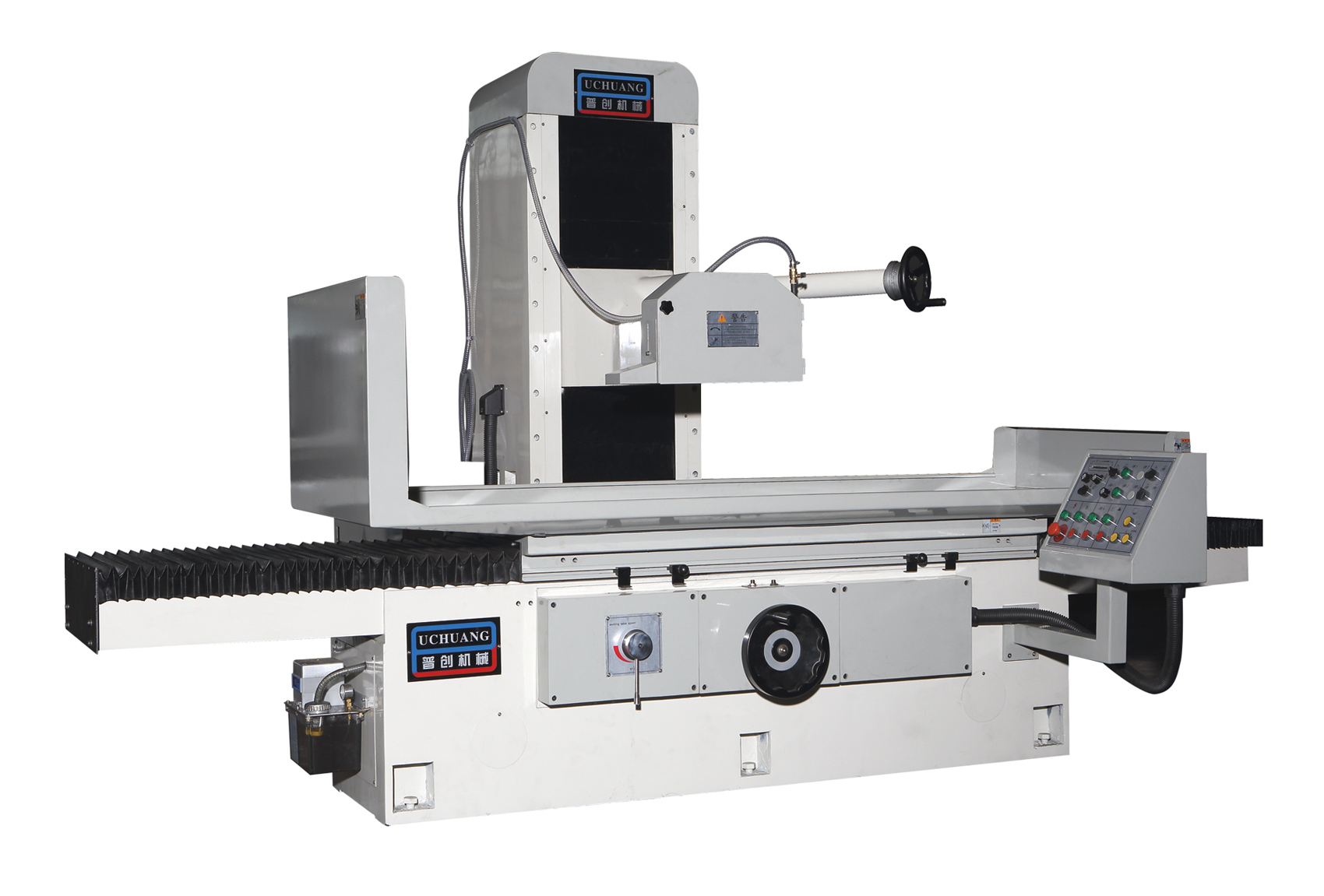

Universal Surface Grinding Machine PCD-50120

Category of ownership：

Summary of details：动柱式精密平面磨床 Precision grinding machineBall screw design, energy saving, portable and accurate. Taiwan imported spindle, spindle swing less than 2um. Hydraulic pressure without vibration stage.

hotline：

18820302725

【introduce】

动柱式精密平面磨床 Precision grinding machine
Ball screw design, energy saving, portable and accurate.
Taiwan imported spindle, spindle swing less than 2um.
The hydraulic system without vibration level ensures the accuracy of the whole machine.
Suitable for heavy cutting and grinding, high processing efficiency
AHR Type - Automatically around, up and down, fast
AHD type - automatic feed from front to back, up and down
(750W servo motor is automatically fitted up and down)
* Optional electronic range adjustment

China's unconditional free warranty for two years, no charge, the only domestic quality assurance machine tool brand for two years!!

参数表	规格parameter	单位	PCD-50100	PCD-50120
能力 general picture	工作台工作面积 Table size （x*y）	mm	500×1000	500×1200
	左右最大移动量X axis travel	mm	1200	1400
	前后最大移动量Y axis travel	mm	570	570
	工作台面至主轴中心最大距离 Max center of wheel to table	mm	700	700
	工作台最大承受重量Maximum load	kg	1200	1500
工作台Table X axis	工作台T型槽 Table T cell specification	mm×N	18×3	18×3
工作台Table X axis	工作台速度 Table speed	m/min	5-25	5-25
前后结构 Y axis	前后手轮进刀(1格/1圈) hand wheel feed degree scale	mm	0.02/5	0.02/5
	前后自动进给automatic feed	mm	0.1-8	0.1-8
	前后快速移动（50HZ/60HZ） Fast moving speed	mm/min	990 / 1190	990 / 1190
砂轮 grinding wheel	砂轮尺寸 grinding wheel size max	mm	φ400×20-50×127
砂轮 grinding wheel	砂轮转速（50HZ/60HZ） grinding wheel speed	R.P.M	1450 / 1740
上下结构 Z axis	上下手轮进刀(1格/1圈) hand wheel feed degree scale	mm	0.005/0.2	0.005/0.2
上下结构 Z axis	上下快速移动速度 Fast moving speed	mm/min	230	230
马达 motor	主轴马达 spindle motor	HXP	7.5×4	7.5×4
	上下驱动马达 the Z axis motor	HXP	1/4×6	1/4×6
	油压马达 hydraulic motor	HXP	3×6	3×6
	冲水马达 cooling motor	W	90	90
	前后驱动马达 the Y axis motor	HXP	1/4×6	1/4×6
尺寸 Size	机器高度height of machine	mm	2150	2150
	占地面积 floor space	mm	3400×2300	3600×2300
	重量 weight	kg	5000	5300
