Saddle type precision grinder

Your current location is：home>>Product Center>>Saddle type precision grinder

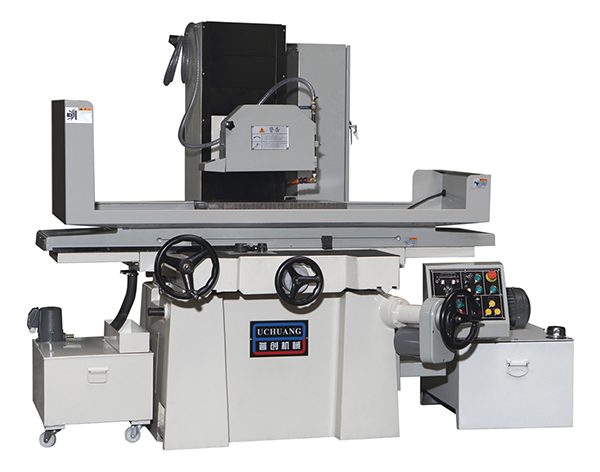

Universal Surface Grinding Machine PCA-3060

Category of ownership：

Summary of details：精密平面磨床 Precision grinding machineThe three axes are designed with high rigidity rigid rail structure to ensure lasting accuracy. Taiwan imported spindle, spindle swing less than 2um. Hydraulic pressure without vibration stage.

hotline：

18820302725

【introduce】

精密平面磨床 Precision grinding machine
The three axes are designed with high rigidity rigid rail structure to ensure lasting accuracy.
Taiwan imported spindle, spindle swing less than 2um.
The hydraulic system without vibration level ensures the accuracy of the whole machine.
PGS-3060 (large grinding wheel)
PGS-S3060 (Small Grinding Wheel)
Type AH - Front, Back, Left and Right Automation
AHR Type - - +Up and Down Fast
AHD Type - - +Up and Down Automatic Feed
(750W servo motor is automatically fitted up and down)

China's unconditional free warranty for two years, no charge, the only domestic quality assurance machine tool brand for two years!!

参数表	规格parameter	单位	PCA-S3060	PCA-3060
能力 general picture	工作台工作面积Table size （x*y）	mm	300×600	300×600
	左右最大移动量X axis travel	mm	720	720
	前后最大移动量Y axis travel	mm	360	360
	工作台面至主轴中心最大距离 Max center of wheel to table	mm	650	650
	工作台最大承受重量Maximum load	kg	400	400
工作台Table X axis	工作台T型槽 Table T cell specification	mm×N	14×1	14×1
工作台Table X axis	工作台速度 Table speed	m/min	5-25	5-25
前后结构 Y axis	前后手轮进刀(1格/1圈) hand wheel feed degree scale	mm	0.02/5	0.02/5
	前后自动进给automatic feed	mm	0.1-8	0.1-8
	前后快速移动（50HZ/60HZ） Fast moving speed	mm/min	990 / 1190	990 / 1190
砂轮 grinding wheel	砂轮尺寸 grinding wheel size max	mm	Φ180×12.5×31.75	Φ350×40×127
砂轮 grinding wheel	砂轮转速（50HZ/60HZ） grinding wheel speed	R.P.M	2850 / 3360	1450 / 1740
上下结构 Z axis	上下手轮进刀(1格/1圈) hand wheel feed degree scale	mm	0.005/1	0.005/1
上下结构 Z axis	上下快速移动速度 Fast moving speed	mm/min	230	230
马达 motor	主轴马达 spindle motor	HXP	2×2	5×4
	上下驱动马达 the Z axis motor	W	80	80
	油压马达 hydraulic motor	HXP	2×6	2×6
	冲水马达 cooling motor	W	90	90
	前后驱动马达 the Y axis motor	W	80	80
尺寸 Size	机器高度height of machine	mm	1800	1800
	占地面积 floor space	mm	3000×1750	3000×1750
	重量 weight	kg	2700	2820
