Saddle type precision grinder
Your current location is:home>>Product Center>>Saddle type precision grinder

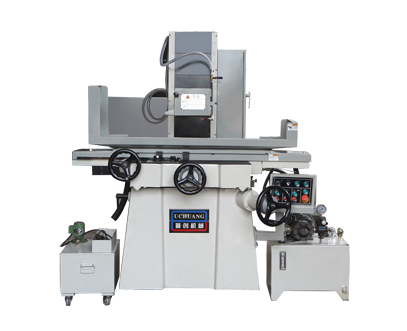

Universal Surface Grinding Machine PCA-250
Category of ownership:
Summary of details:精密平面磨床 Precision grinding machineThe three axes are designed with high rigidity rigid rail structure to ensure lasting accuracy. Taiwan import spindle. No vibration level hydraulic system to ensure the accuracy of the whole machine.
hotline:

18820302725


【introduce】

精密平面磨床 Precision grinding machine
The three axes are designed with high rigidity rigid rail structure to ensure lasting accuracy.
Taiwan import spindle.
The hydraulic system without vibration level ensures the accuracy of the whole machine.
M-Type-Three-Axis Manual

H-type - left and right automatic, up and down manual

Type AH - Automatic from front to back, manual from top to bottom

AHR Type - Automatically around, up and down, fast

AHD Type - Front, Back, Left and Right Automatically, Up and Down Automatically
(750W servo motor is automatically fitted up and down)

China's unconditional free warranty for two years, no charge, the only domestic quality assurance machine tool brand for two years!!

参数表 规格parameter单位PCA-250PCA-2550
能力 general picture工作台工作面积Table size (x*y)mm200×500250×500
左右最大移动量X axis travelmm600600
前后最大移动量Y axis travelmm235280
工作台面至主轴中心最大距离
Max center of wheel to table
mm400500
工作台最大承受重量Maximum loadkg200250
工作台Table
X axis
工作台T型槽
Table T cell specification
mm×N14×114×1
工作台速度 Table speedm/min5-255-25
前后结构
Y axis
前后手轮进刀(1格/1圈)
hand wheel feed degree scale
mm0.02/50.02/5
前后自动进给automatic feedmm0.1-80.1-8
前后快速移动(50HZ/60HZ)     Fast moving speedmm/min990 / 1190990 / 1190
砂轮
grinding wheel
砂轮尺寸 grinding wheel size  maxmmΦ180×12.5×31.75Φ180×12.5×31.75
砂轮转速(50HZ/60HZ)
grinding wheel speed
R.P.M2850 / 33602850 / 3360
上下结构
Z axis
上下手轮进刀(1格/1圈)
hand wheel feed degree scale
mm0.005/1  0.005/1
上下快速移动速度
Fast moving speed
mm/min230230
马达
motor
主轴马达 spindle motor HXP2×2   3×2
上下驱动马达 the Z axis motorW8080
油压马达 hydraulic motorHXP1×61×6
冲水马达 cooling motor  W9090
前后驱动马达 the Y axis motorW4040
尺寸
Size

机器高度height of machinemm17001800
占地面积 floor spacemm1800×14001800×1400
重量 weightkg12001400
